15" Replacement Hose Whip

$28.23

Save:

Quantity

Milton Industries Inc.®

Part: 519

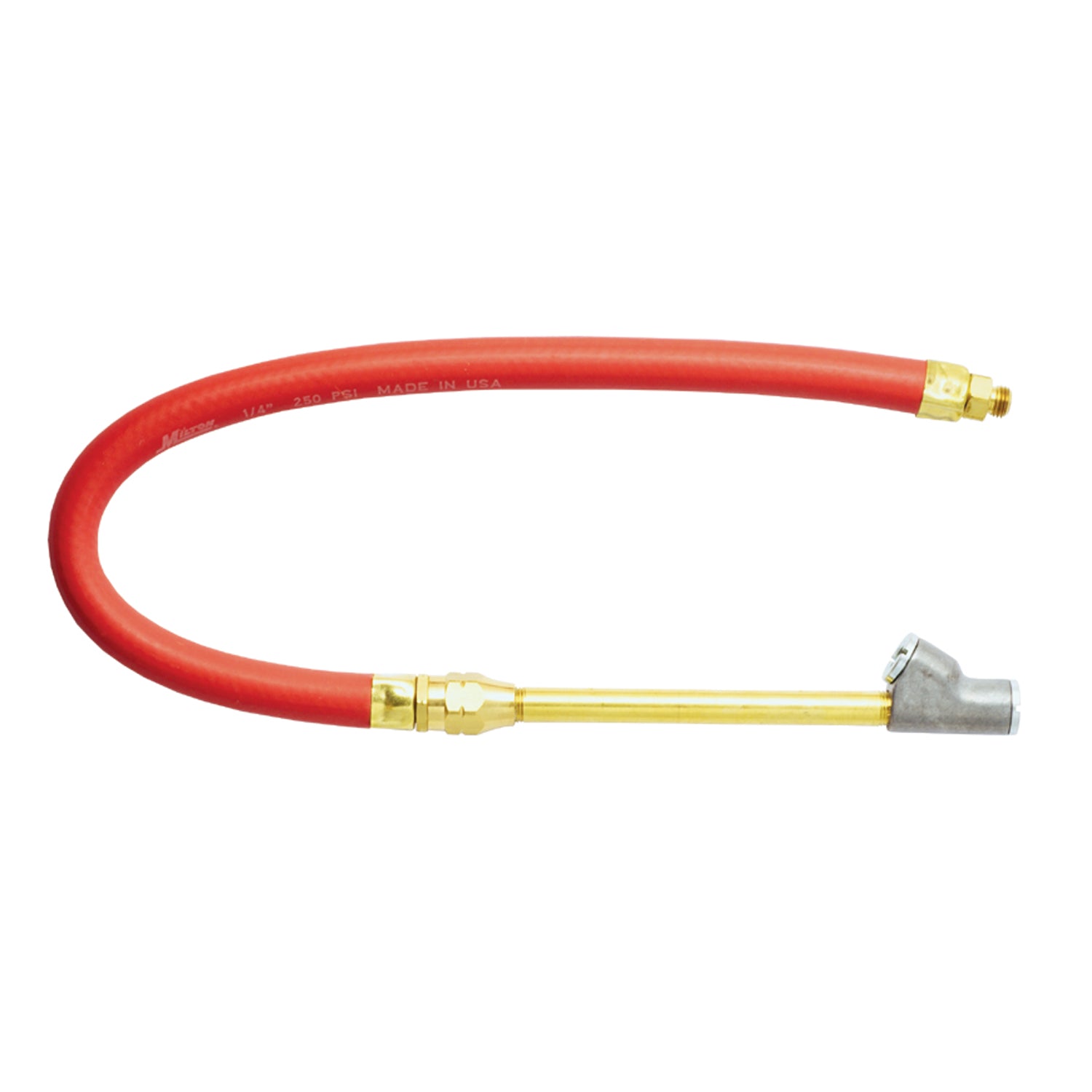

Replacement Hose Whip for 516, 15" Hose

Replacement part
Pressure range of 10 to 160 pounds per square inch or 80 to 840 kilopascal
3/8-24 threads

Replacement Hose Whip for 516, 15" Hose

Categories: Specialty Tools, Tire Inflators

Number of Items in This Pack: 1

This 15 inch heavy duty hose whip can be used to replace the old hose on the original dual head inflator gauge #516.

INSTRUCTIONS FOR USE:

If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tires Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure its not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.

Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.

This 15 inch heavy duty hose whip can be used to replace the old hose on the original dual head inflator gauge #516.

INSTRUCTIONS FOR USE:

If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tires Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure its not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.

Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.
